NEW QUESTION 44
An employee of company ABC just quit. The IT administrator deleted the employee’s user id from the active directory at 10 a m. on March 4th The nightly sync occurs at 10 p.m. daily. The IT administrator wants to troubleshoot and find a way to delete the user id as soon as possible How is this issue resolved?

Wart until 10 pm on March 4th when the user is automatically removed from Cisco UCM.

Wait until 10 pm on March 5th when the user is automatically removed from Cisco UCM.

Wait until 3 15 a.m. on March 6th for garbage collection to remove the user from Cisco UCM.

Wait until 315am on March 5th for garbage collection to remove the user from Cisco UCM.

NEW QUESTION 45
In the cisco expressway solution, which two features does mobile and Remote access provide? (Choose two)

VPN-based enterprise access for a subset of Cisco Unified IP Phone models

Secure reverse proxy firewall travelsal connectivity

the ability to register third-party SIP or H.323 devices on Cisco UCM without requiring VPN

the ability of Cisco IP Phones to access the enterprise through VPN connection

the ability for remote users and their devices to access and consume enterprise collaboration applications and services

NEW QUESTION 46
An engineer is configuring IP telephony. The network relies on DHCP to provide TFTP server addresses to the endpoints. Policy requires the endpoints to receive two server addresses. Which DHCP option must be configured?

66

143

150

166

NEW QUESTION 47
Multiple route patterns match a number. How does Cisco Unified Communications Managers determine which pattern to use?

the one that comes first in numerical order

the one with the longest match

the one with the closest match

the one that discards everything PreDot

NEW QUESTION 48
Refer to the exhibit.

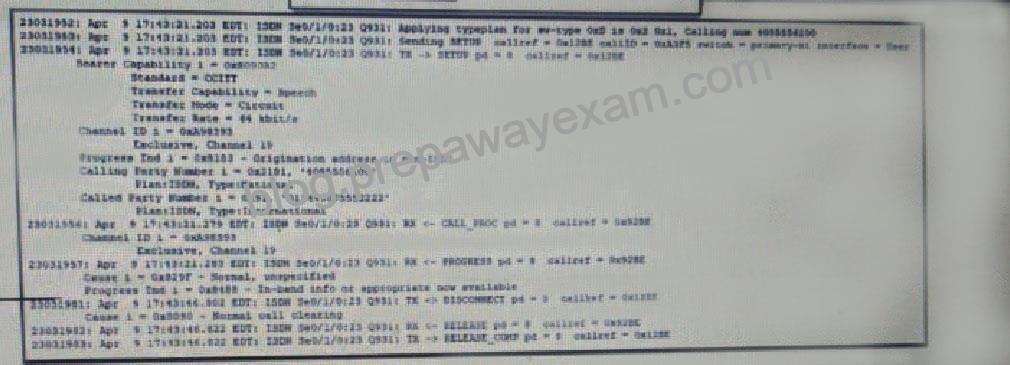

A call to an international number has failed. Which action corrects this problem?

Assign a transcoder to the MRGL of the gateway.

Strip the leading 011 from the called party number

Add the bearer-cap speech command to the voice port.

Add the isdn switch-type primart-dms100 command to the serial interface.

NEW QUESTION 49
When a remote office location is set up with limited bandwidth resources, which codec carries the most voice calls?

G.722

G.711

G.723

G.729

NEW QUESTION 50

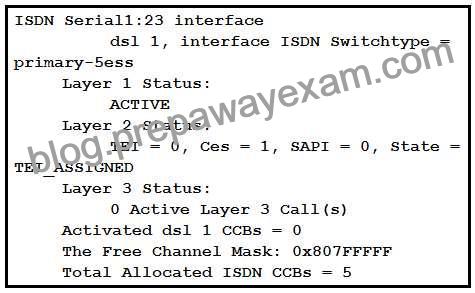

Refer to the exhibit. What is a possible cause of the PRI issue?

The cable is unplugged.

The clock source is incorrect.

The controller shut down.

The framing is configured incorrectly.

NEW QUESTION 51
Refer to the exhibit.

Refer to the exhibit. A customer wants the SIP 200 OK shown to advertise codecs in the following order:

After correcting the codec preferences. What should the audio payload show in the SIP Traces?

Option A

Option B

Option C

Option D

NEW QUESTION 52
A user dials 9011841234567 to reach Vietnam. Which steps send the call to the PSTN provider as 011841234567?

NEW QUESTION 53
What is the major difference between the two possible Cisco lM and Presence high-availability modes?

Balanced mode provides user load balancing and user failover in the event of an outage. Active/standby mode provides an always on standbynode in the event of an outage, and it also provides load balancing.

Balanced mode provides user load balancing and user failover only for manually generated failovers. Active/standby mode provides anunconfigured standby node in the event of an outage, but it does not provide load balancing.

Balanced mode provides user load balancing and user failover in the event of an outage. Active/standby mode provides an always on standbynode in the event of an outage, but it does not provide load balancing.

Balanced mode does not provide user load balancing, but it provides user failover in the event of an outage. Active/standby mode provides analways on standby node in the event of an outage, but it does not provide load balancing.

NEW QUESTION 54

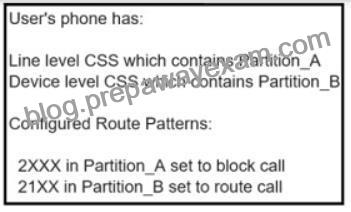

Refer to the exhibit. An engineer is confining class of control for a user in Cisco UCM. Which change will ensure that the user is unable to call 2143?

Change line partition to Partition_A

Change line CSS to only contain Partition_B

Set the user’s line CSS to <None>

Set the users device CSS to <None>

NEW QUESTION 55
Refer to the exhibit.

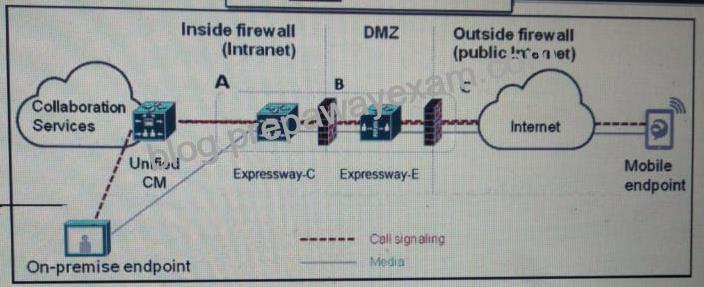

When making a call to a MRA client, what are the combinations of protocol on each of the different sections A-B-C?

IP TCP/TLS(A) +SIP TCP/TLS (B) +TLS (C)

SIP TLS (A) +SIP TLS (B) +SIP TLS (C)

SIP TCP/TLS (A) + SIP TLS (B) + SIP TLS (C)

SIP TCP/TLS +SIP TCP/TLS (B) + SIP TCP/TLS (C)

NEW QUESTION 56

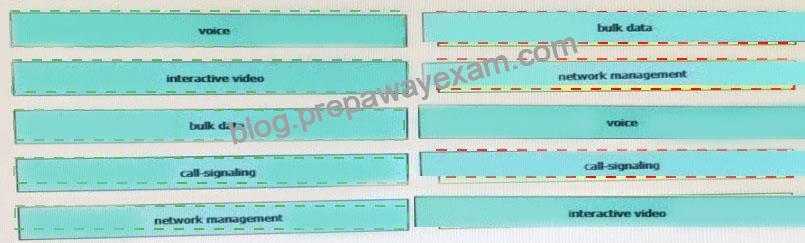

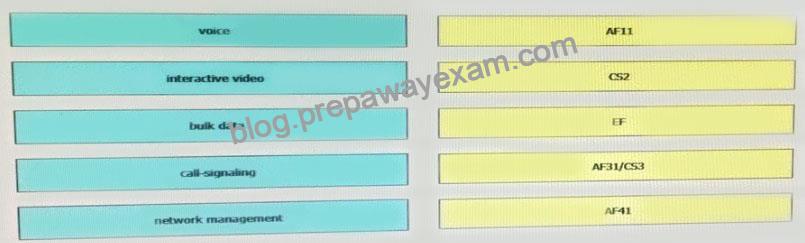

According to the QoS Baseline Model, drag and drop the applications form the left onto the correct per-Hop Behaviour values on the right.

NEW QUESTION 57
What is the major difference between the two possible Cisco IM and presence high-availability modes?

Balanced mode provides user load balancing and user failover only for manually generated failovers.
Active/standby made provides an unconfigured standby node in the event of an outage, but it does not provide load balancing.

Balanced mode provides user load balancing and user failover in the event of an outage.
Active/standby mode provides an always on standby node in the event of an outage, but it does not provide load balancing.

Balanced mode does not provide user load balancing, but it provides user failover in the event of an outage.
Active/standby mode provides an always on standby node in the event of an outage, but is does not provide load balancing.

Balanced mode provides user load failover in the event of an outage.
Active/standby mode provides an always on standby node in the event of an outage, and is also provides load balancing.

NEW QUESTION 58
Configuration of DNS is required to achieve a fully functional Cisco UCM system. Cisco UCM uses DNS to resolve fully qualified domain names to IP addresses for which destinations?

H.323

trunk

AAR

MRA

NEW QUESTION 59
An engineer is configuring a BOT device for a Jabber user in Cisco Unified Communication Manager. Which phone type must be selected?

Cisco Dual Mode for iPhone

Cisco Dual Mode for Android

third-party SIP device

Cisco Unified Client Services Framework

NEW QUESTION 60
Refer to the exhibit. In this cisco UCM setup configured for EARLY offer, what is the codec preference line in the initial SIP INVITE SDP?

m=audio 16444 RTP/AVP 9 18 101

m=audio 16444 RTP/AVP 0 8 18 101

m=audio 16444 RTP/AVP 18 101

m=audio 16444 RTP/AVP 9 0 8 18 101

NEW QUESTION 61
Which packet delay is the maximum supported between Cisco Unified Communications Manager nodes for clustering over WAN deployments?

150 ms round tip

510 ms round trip

40 ms round trip

80 ms round trip

NEW QUESTION 62

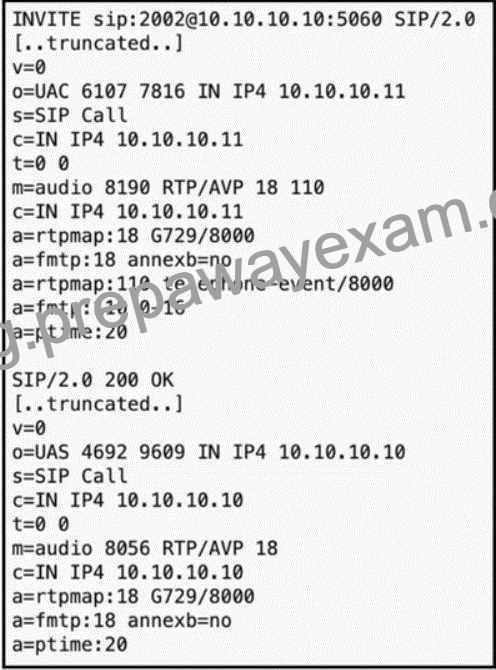

Refer to the exhibit. The SDP offer/answer has been completed successfully but there is no DTMF when users press keys. What is the cause of the issue?

Payload type 110 was negotiated rather than type 101.

DTMF was negotiated property in these messages.

DTMF was not negotiated on the call.

G.729 rather than G.711ulaw was negotiated.
